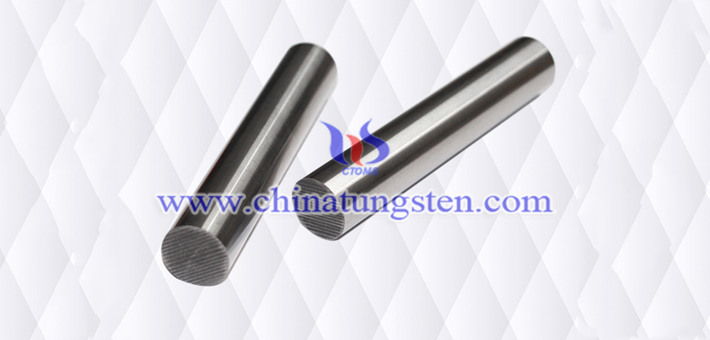

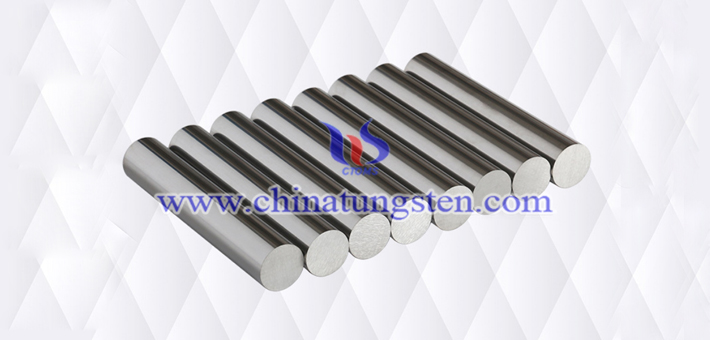

92.5W-5.4Ni-2.1Fe tungsten alloy cylinder has high temperature strength, good red hardness, low expansion coefficient, high thermal conductivity and good corrosion resistance. It can withstand the intense erosion of high-density gas flow, which can be used as high temperature resistant gas ablative component, such as various engine components.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-cylinder.html
The properties of 92.5W-5.4Ni-2.1Fe tungsten alloy cylinder are:
Nominal W Content: 92.5 wt.%
Nominal Nickel Content: 5.4 wt.%
Nominal Iron Content: 2.1 wt.%
MIL-T-21014: Class 2
SAE-AMS-T-21014: Class 2
AMS 7725 B: NIL
ASTM B777-87: Class 2
Minimum Density: 17.15 g/cc
Typical Hardness: 28HRC
Modulus of Elasticity: 48x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 8%
Magnetic Properties: Slightly Magnetic
